Deploy WFilter with a Proxy Server

4.0

Author:

IMFirewall Software

HomePage:

http://www.imfirewall.us

Contents

1. Enable Proxy Server
2. Configure clients to use this proxy server
3. Router Settings
4. Success

WFilter can act as a proxy server to share internet connection to other computers. "HTTP Proxy", "SOCK5 Proxy", "SMTP Proxy" and "POP3 Proxy" are supported.

Since all internet traffic will pass through the proxy server, WFilter is able to monitor and filter other computer internet access with proxy service enabled.

1. Enable Proxy Server

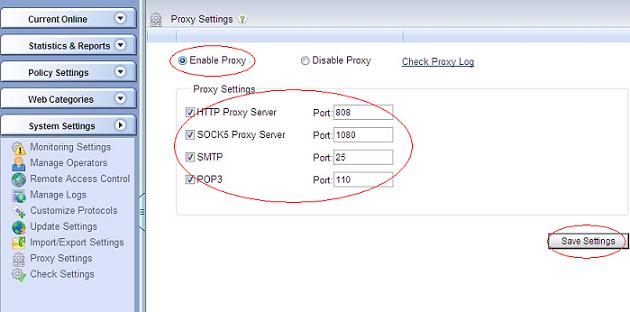

Choose "Enable Proxy" in "System Settings"->"Proxy Settings", as Figure 1:

Figure 1

2. Configure clients to use this proxy server

To make clients to access internet via this proxy server, you need to do certain settings in client computers. Please refer to "Detailed Proxy Client Settings" for more details.

3. Router Settings

To force all client computers to use this proxy server, you need to block all computers in your router/firewall except the proxy server.

4. Success

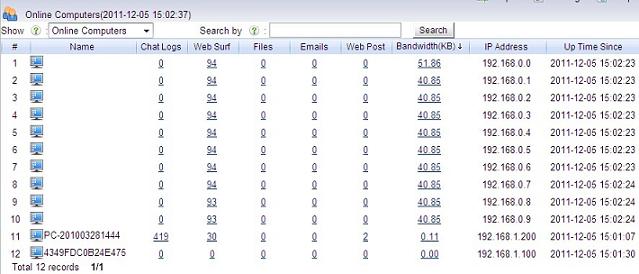

Following above steps, WFilter will be able to monitor all client computers internet activities, as in Figure 2:

Figure 2
