WFilter deployment with Dlink 3226 switch
4.0
- Author:
- IMFirewall Software
- HomePage:
- http://www.imfirewall.us

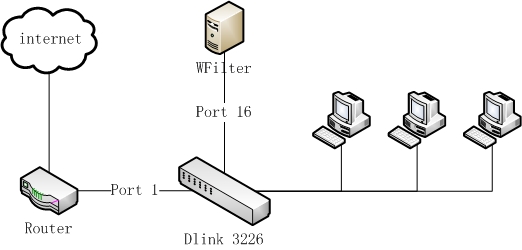

A network is connected with a dlink 3226 switch. The network topology diagram:
Figure 1
In this network, we only need to do port mirroring in the Dlink 3226 switch to do monitoring and filtering.
The below diagram shows the mirroring settings of the dlink switch:
Figure 2
As in the diagram above, port 16 is connected with the router and port 1 is connected to the computer with WFilter installed on.
To check whether port mirroring is properly configured, please check: How to check whether port mirroring is properly configured?
For more WFilter deployment examples, please check: WFilter Deployment Examples.
